Bingfu GPS Antenna SMA Male Connector Vehicle Waterproof Active GPS Aerial for Car Stereo Head Unit GPS Navigation System Module Truck Marine Boat GPS Tracker Locator Real Time Tracking Device

Specifications:
1. Dielectric Antenna
Center Frequency: 1575.42MHz ±3MHz
V.S.W.R: 2:01
Bandwidth: ±5 MHz
Impedance: 50
Peak Gain: > 3dBic based on 7x7cm ground plane
Gain Coverage: > -4dBic at -90 <0 <90 (over 75 volume)
Polarization: RHCP
2. LNA/Filter
LNA Gain Without cable: 28dB Typical
Noise Figure: 2.0dB
Filter Out Band Attenuation: (f0=1575.42MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R: <2.0
DC Voltage: 3V to 5V
DC current: 7-10MA
3. Overall
Frequency Range: 1575/1609MHz
V.S.W.R: 2.0
Gain: 30±3dBic
Impedance: 50 Ohm
3. Mechanical
Weight: 60 gram
Size: 35x30x15mm
Cable: RG174
Length: 3m
Connector: SMA Male Plug Connector
Mounting: Magnet base
Housing: Black
4. Environmental
Working Temp: -40 to 85℃
Waterproof test: 4 hours under the tap, let the water rush over the housing;
Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
Humidity: 95% ~ 100% R

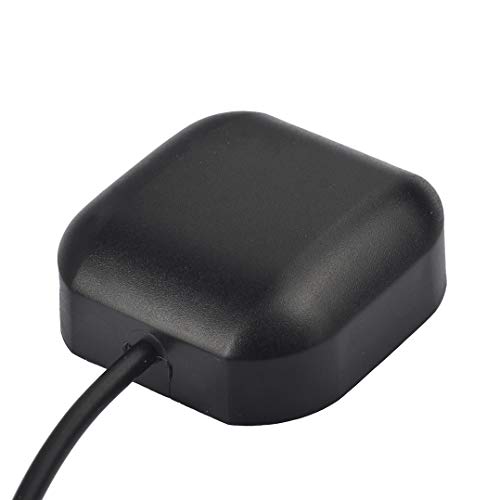

Package List: 1 x Antenna (As the Picture Shown)

Frequency: GPS 1575.42MHz ±3 MHz; LNA Gain: 28dB; Power Supply DC Voltage: 3V to 5V; Power Supply DC Current: 10mA Max; Feature: Strong Magnetic Base Mounting;
Cable Length: 3m; Connector: SMA Male Connector;
Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; 4G LTE Industrial Gateway Modular Modem Mobile Router; 4G LTE Cellular RTU DTU Terminal; Trail Camera;
Compatible with: Vehicle Telematics; 4G LTE GPS Tracker Locator; Vehicle Real Time Tracking Mobile DVR Video Recorder; Bus Truck RV Van Security Alarm System;
Package List: 1 x GPS Antenna (As the Picture Shown)
